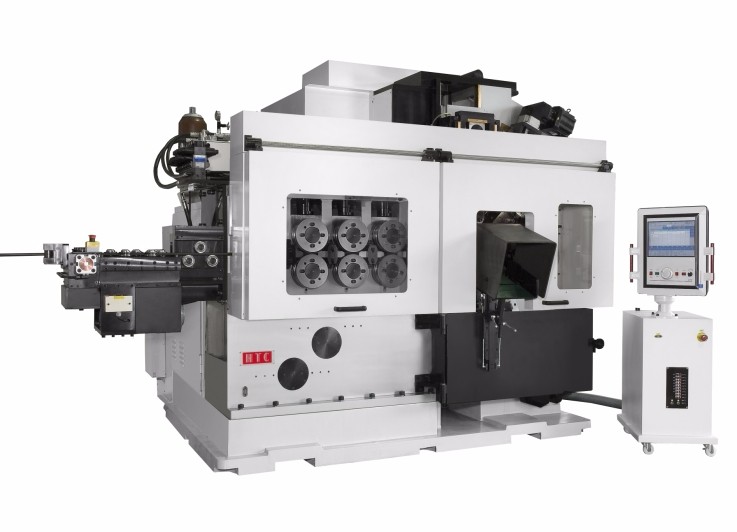

8 Axes Spring Coiling Machine (CQ series)


  • 8 servo motors, industrial computer controlled insures reliable control.
  • Graphic and easy to use software simplifies programming.
  • A micro pulse hand wheel is used for easy setup and programming.
  • Standard spring shapes are pre-programmed in computer CPU for easy setup.
  • O.D. control is standard feature.
  • Touchscreen control interface for easy operation.
  • The Central Slide (i.e. the cutter, pitch slides and mandrel all together) will move to the correct position automatically according to the program while O.D. is changed during production, which provides setup convenience and strengthens cutter structure.
  • Cam-less operation insures fast and easy setup.
  • Mandrel in-out movement is programmable which provides setup flexibility.
  • Advanced coiling point system design insures easy right / left hand coiling conversion without coiling point slide replacement.
  • Rotating cutoff and straight cutoff capability are both standard features for more flexible application.



Our Spring Coiling Machines :

12 Axes Spring Coiling Machine (PX series)

8 Axes Spring Coiling Machine (CQ series)

6 Axes Spring Coiling Machine (CP series)

5 Axes Spring Coiling Machine (CL series)

4 Axes Spring Coiling Machine (CF series)

2 Axes Spring Coiling Machine (CS series)



Photo Model Wire Dia. Max. O.D. Production
ModelHTC60CQ Wire Dia.2.2mm-6.0mm
(.086” - .236”)
Max. O.D.120mm
Production RateMAX. 180 pcs/min Dimension (LxWxH)220x140x200cm
ModelHTC120CQ Wire Dia.5.0mm-14.0mm
(.197” - .551”)
Max. O.D.180mm
Production RateMAX. 60 pcs/min Dimension (LxWxH)390x255x238cm
ModelHTC160CQ Wire Dia.8.0mm-18.0mm
(.315” - .708”)
Max. O.D.250mm
Production RateMAX. 50 pcs/min Dimension (LxWxH)435x292x272cm
* The specifications and features are subject to change without notice.
