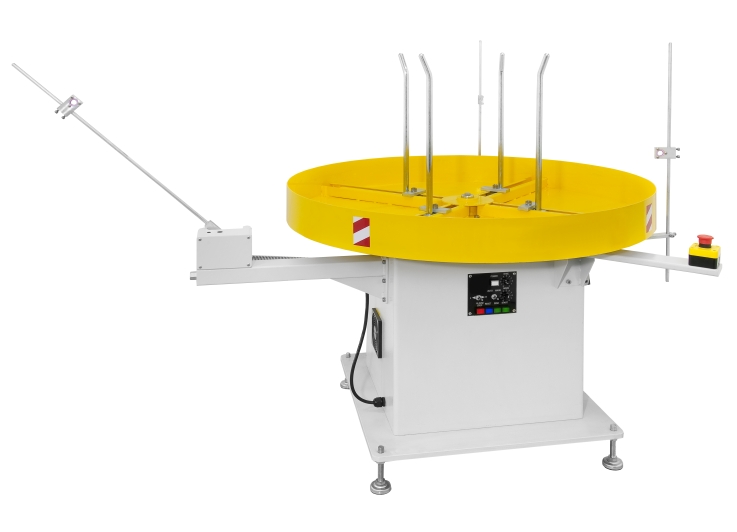

High Speed Wire Pay Off System (FR series)
Description
- Inverter driving motor for optimum high speed control.
- Motor brake to prevent wire tangle.
- Synchronized control insures smooth wire feed to increase spring quality.
Our Wire Pay Off System :
Wire Pay Off System (HR series)
High Speed Wire Pay Off System (FR series)
High Speed Wire Pay Off System for spool wire (VR series)
Specification
| Photo | Model |
Table Diameter |
Max. Load | Reference Max. Wire Dia. |
Outside Dimension - (L) |
Outside Dimension - (W) |
Outside Dimension - (H) |
Weight |
|---|---|---|---|---|---|---|---|---|
|
ModelFR200 | Table
Diameter∮1100mm (∮43”) |
Max. Load200KGS (440LBS) |
Reference
Max. Wire
Dia.∮3.0mm (∮.118”) |
Outside
Dimension
- (L)1440mm (57”) |
Outside
Dimension
- (W)1120mm (44”) |
Outside
Dimension
- (H)840mm (33”) |
Weight250KGS (550LBS) |
