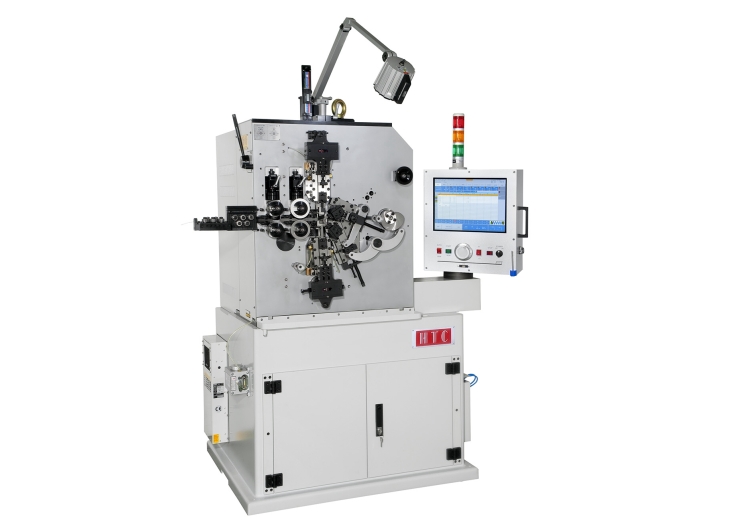

5 Axes Spring Coiling Machine (CL series)

Description

5 servo motors, industrial computer controlled insures reliable control.
Graphic and easy to use software simplifies programming.
A micro pulse hand wheel is used for easy setup and programming.
Standard spring shapes are pre-programmed in computer CPU for easy setup.
O.D. control is standard feature.
Touchscreen control interface for easy operation.
Advanced coiling point system design insures easy right / left hand coiling conversion without coiling point slide replacement. (except HTC10CL, HTC16CL)
Cam-less operation provides quick and easy setup.
Rotating cutoff and straight cutoff capability are both standard features for more flexible application.
Mandrel in-out movement is programmable which provides setup flexibility.

Our Spring Coiling Machines :

12 Axes Spring Coiling Machine (PX series)

Model	Wire Dia.	Max. O.D.	Production Rate	Dimension (LxWxH)	Weight
ModelHTC10CL	Wire Dia.0.2mm-1.0mm (.008” - .039”)	Max. O.D.25mm (.98”)	Production RateMAX. 999 pcs/min	Dimension (LxWxH)130x75x165cm (51”x30”x65”)	Weight500KGS (1100LBS)
ModelHTC16CL	Wire Dia.0.4mm-1.6mm (.016” - .063”)	Max. O.D.35mm (1.37”)	Production RateMAX. 425 pcs/min	Dimension (LxWxH)140x90x175cm (55”x35”x69”)	Weight650KGS (1400LBS)
ModelHTC45CL	Wire Dia.1.8mm-4.6mm (.070” - .181”)	Max. O.D.70mm (2.75”)	Production RateMAX. 250 pcs/min	Dimension (LxWxH)190x160x190cm (75”x63”x75”)	Weight2600KGS (5700LBS)
ModelHTC60CLII	Wire Dia.2.2mm-6.0mm (.086” - .236”)	Max. O.D.100mm (3.93”)	Production RateMAX. 180 pcs/min	Dimension (LxWxH)225x160x200cm (89”x63”x79”)	Weight3300KGS (7300LBS)
ModelHTC80CLII	Wire Dia.3.0mm-8.0mm (.118” - .315”)	Max. O.D.140mm (5.51”)	Production RateMAX. 150 pcs/min	Dimension (LxWxH)245x190x230cm (96”x75”x91”)	Weight5000KGS (11000LBS)
