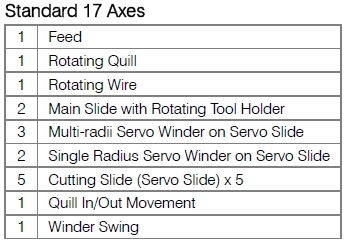

17-21 Axes Spring Forming Center (HTC35XUIII)
Description
- 17-21 servo motors, computer control provides total cam-less operation.
- The winder swinging is available on 3 slides to control the right / left position, thus the offset position of servo winder and tool holders is easily adjusted. The winder swinging provides further flexibility for making complicated shapes.
- Quill In/Out movement insures easy setup for various radii and bending.
- “Rotating Tool Holder” on main slide with body tool and bending tool provides multi-forming capability for most springs.
- Minimal tooling is required, meaning lower tooling costs.
- Optional Single radius and Multi-radii servo winders provide total forming flexibility, making all bending processes fast and efficiently.
- Touchscreen control for easy operation.
Specification
Wire Dia.
| Model | Wire Dia. | Max. O.D. | Dimension (LxWxH) |
Weight |
|---|---|---|---|---|
| ModelHTC35XUIII | Wire Dia.1.6mm-3.6mm (.063” - .141”) |
Max. O.D.50mm (1.96") |
Dimension
(LxWxH)190x268x197cm (75”x106”x78”) |
Weight6100KGS (13400LBS) |
