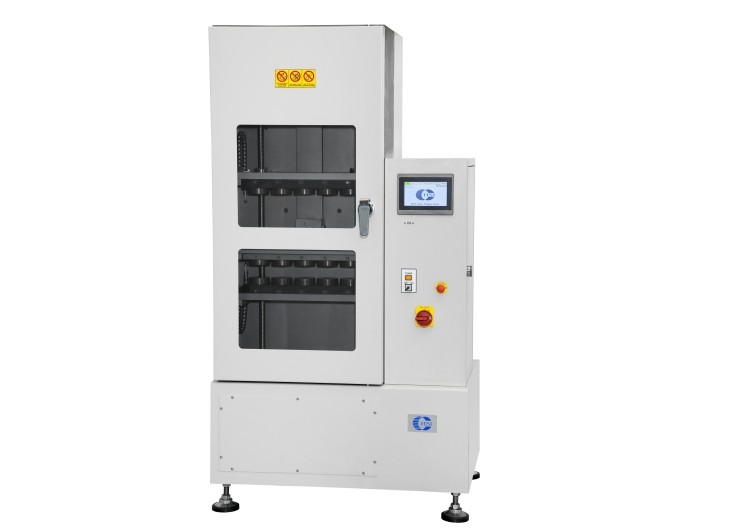

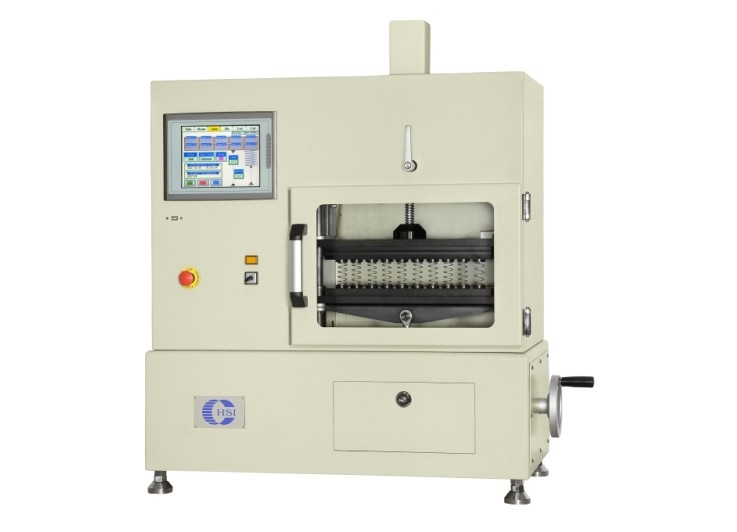

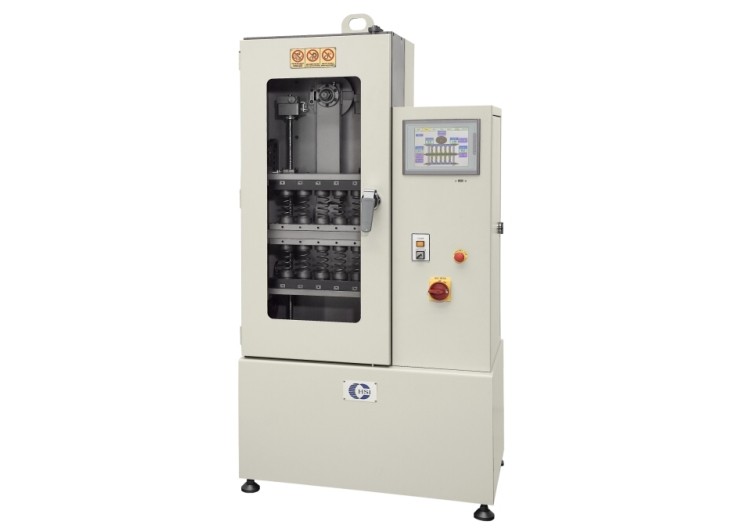

Compression Spring Fatigue Tester (HST-F series)

Description

  • HMI used for friendly operation.
  • Individual cycle counting for each test station.
  • Auto stop when setup cycle achieved.
  • Auto stop function can be set to stop for single failure or multiple (all) failures.
  • Touchscreen for easy setup.
  • Maximum cycle : 999,999 cycles.
  • Numerical free length & amplitude displayed insures easy setup.
  • USB port available for test results printout through Flash Disk.



Our Spring Tester :

Auto Spring Tester (HST-AII series)

Auto Torsion Spring Tester (HST-TII series)

Manual Spring Tester (HST-HM series)

Manual Torsion Spring Tester (HST-HMT series)

Compression Spring Fatigue Tester (HST-F series)

Torsion Spring Fatigue Tester (HST-FT series)

Specification

Model Max. Load Max. O.D. Compression
Free Length
Extension
Free Length
Max.
Amplitude
Number
of Test
Station
Dimension
(LxWxH)
Weight
ModelHST50F Max. Load50kg
(500 N)
Max. O.D.25mm
(1.0”)
Compression Free Length150mm
(5.9”)
Extension Free Length100mm
(3.9”)
Max. Amplitude40mm
(1.6”)
Number of Test Station10 PCS Dimension (LxWxH)875x465x975mm
(34”x18”x38”)
Weight145KGS
(320LBS)
ModelHST200F Max. Load200kg
(2000 N)
Max. O.D.50mm
(2.0”)
Compression Free Length200mm
(7.9”)
Extension Free Length150mm
(5.9”)
Max. Amplitude60mm
(2.4”)
Number of Test Station10 PCS Dimension (LxWxH)820x650x1650mm
(32”x26”x65”)
Weight450KGS
(990LBS)
ModelHST500F Max. Load500kg
(5000 N)
Max. O.D.80mm
(3.1”)
Compression Free Length200mm
(7.9”)
Extension Free Length150mm
(5.9”)
Max. Amplitude100mm
(3.9”)
Number of Test Station10 PCS Dimension (LxWxH)910x680x1730mm
(36”x27”x68”)
Weight700KGS
(1540LBS)
ModelHST1000F Max. Load1000kg
(10000 N)
Max. O.D.100mm
(3.9”)
Compression Free Length250mm
(9.8”)
Extension Free Length180mm
(7.1”)
Max. Amplitude120mm
(4.7”)
Number of Test Station10 PCS Dimension (LxWxH)1030x800x1780mm
(41”x31”x70”)
Weight920KGS
(2020LBS)
ModelHST2000F Max. Load2000kg
(20000 N)
Max. O.D.120mm
(4.7”)
Compression Free Length250mm
(9.8”)
Extension Free Length180mm
(7.1)
Max. Amplitude120mm
(4.7”)
Number of Test Station6 PCS Dimension (LxWxH)1130x890x1800mm
(44”x35”x71”)
Weight1050KGS
(2310LBS)
ModelHST3000F Max. Load3000kg
(30000 N)
Max. O.D.160mm
(6.3”)
Compression Free Length400mm
(15.7”)
Extension Free Length400mm
(15.7”)
Max. Amplitude220mm
(8.7”)
Number of Test Station6 PCS Dimension (LxWxH)1775x920x1930mm
(70”x36”x76”)
Weight1850KGS
(4070LBS)
* The specifications and features are subject to change without notice.
