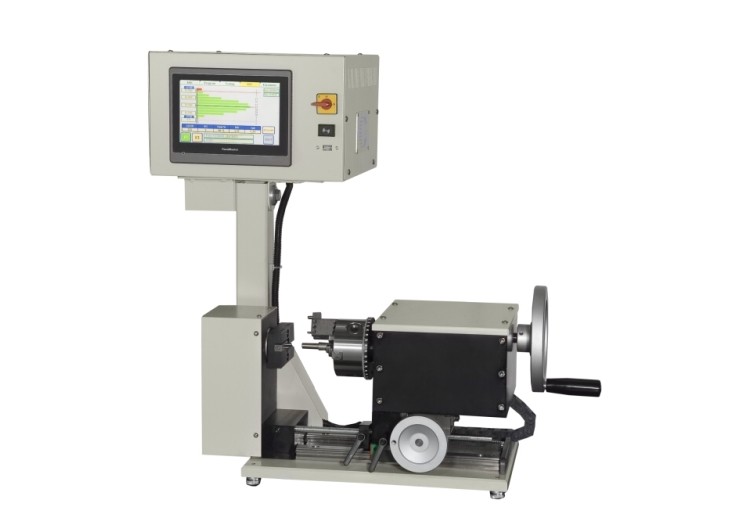

Manual Torsion Spring Tester (HST-HMT series)

Description

  • HMI used for friendly operation.
  • Touch panel for easy setup.
  • A1, A2, two step measurement.
  • Spring rate calculation.
  • Torque cell overload warning.
  • Built-in angle compensation.
  • Tolerance setup for bad spring sorting, with color alarm and buzzer.
  • On-screen histogram charting and SPC data.
  • Both torque and force can be measured.
  • Imperial or metric units switchable (N-m, N-cm, N-mm, kg-m, kg-mm, gf-m, gf-cm, ozf-in, lbf-ft, lbf-in, N, kg, gf, ozf, lbf).
  • USB port available for test results printout through Flash Disk.



Our Spring Tester :

Auto Spring Tester (HST-AII series)

Auto Torsion Spring Tester (HST-TII series)

Manual Spring Tester (HST-HM series)

Manual Torsion Spring Tester (HST-HMT series)

Compression Spring Fatigue Tester (HST-F series)

Torsion Spring Fatigue Tester (HST-FT series)

Specification

Model Torque
Capacity
Torque
Resolution
Min. Angle
Display
Dimension
(LxWxH)
Weight
ModelHST0.5HMT Torque Capacity0.5 Nm
(50 kgmm)
Torque Resolution0.00001 Nm
(0.001 kgmm)
Min. Angle Display0.1° Dimension (LxWxH)750x565x625mm
(30”x22”x25”)
Weight50KGS
(110LBS)
ModelHST2HMT Torque Capacity2 Nm
(200 kgmm)
Torque Resolution0.0001 Nm
(0.01 kgmm)
Min. Angle Display0.1° Dimension (LxWxH)750x565x625mm
(30”x22”x25”)
Weight50KGS
(110LBS)
ModelHST20HMT Torque Capacity20 Nm
(2000 kgmm)
Torque Resolution0.001 Nm
(0.1 kgmm)
Min. Angle Display0.1° Dimension (LxWxH)750x565x625mm
(30”x22”x25”)
Weight50KGS
(110LBS)
* The specifications and features are subject to change without notice.
