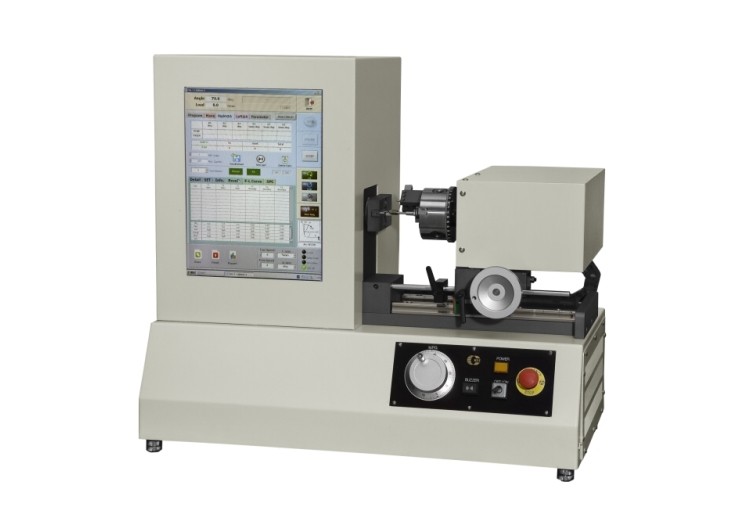

Auto Torsion Spring Tester (HST-TII series)

Description

1. SPRING ANALYSIS

  • Spring torque/angle curve graphical tools- analyze torque/angle of rotation and spring rate at any point on the curve.

2. SPRING MEASUREMENT

  • Free angle A0, A1, A2, A3, and spring rate measurement.
  • Software calculation for testers pin sizes.
  • Algorithm for auto detecting free angle available. This is required for measurement and testing relative to the free angle.
  • Tolerance setup available, color and buzzer alarm for bad spring.
  • All set-up data and measurement results can be stored and easily retrieved via the industrial computer.
  • On-screen distribution charting and reports for SPC control.
  • Imperial and metric units switchable.
  • A standard PC compatible printer can be connected via USB connection. (Optional)



Our Spring Tester :

Auto Spring Tester (HST-AII series)

Auto Torsion Spring Tester (HST-TII series)

Manual Spring Tester (HST-HM series)

Manual Torsion Spring Tester (HST-HMT series)

Compression Spring Fatigue Tester (HST-F series)

Torsion Spring Fatigue Tester (HST-FT series)

Auto Load Sorting Spring Tester (HST-ASII series)

Auto Pre-set & Load Sorting Spring Tester (HST-ASP series)

Specification

Model Torque
Capacity
Torque
Resolution
Min. Angle
Display
Dimension
(LxWxH)
Weight
ModelHST0.5TII Torque Capacity0.5 Nm
(50 kgmm)
Torque Resolution0.00001 Nm
(0.001 kgmm)
Min. Angle Display0.1° Dimension (LxWxH)680x360x530mm
(27”x14”x21”)
Weight85KGS
(190LBS)
ModelHST2TII Torque Capacity2 Nm
(200 kgmm)
Torque Resolution0.0001 Nm
(0.01 kgmm)
Min. Angle Display0.1° Dimension (LxWxH)680x360x530mm
(27”x14”x21”)
Weight85KGS
(190LBS)
ModelHST20TII Torque Capacity20 Nm
(2000 kgmm)
Torque Resolution0.001 Nm
(0.1 kgmm)
Min. Angle Display0.1° Dimension (LxWxH)680x360x530mm
(27”x14”x21”)
Weight85KGS
(190LBS)
* The specifications and features are subject to change without notice.
