Home Products Auto Spring Tester (HST-AII series)

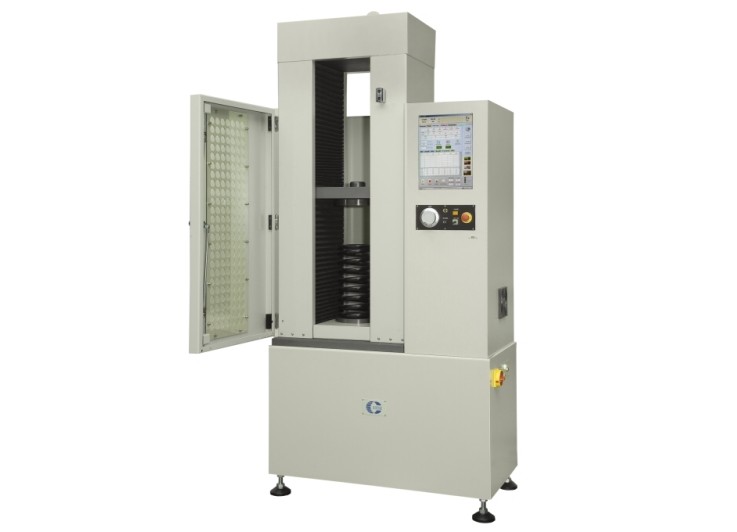

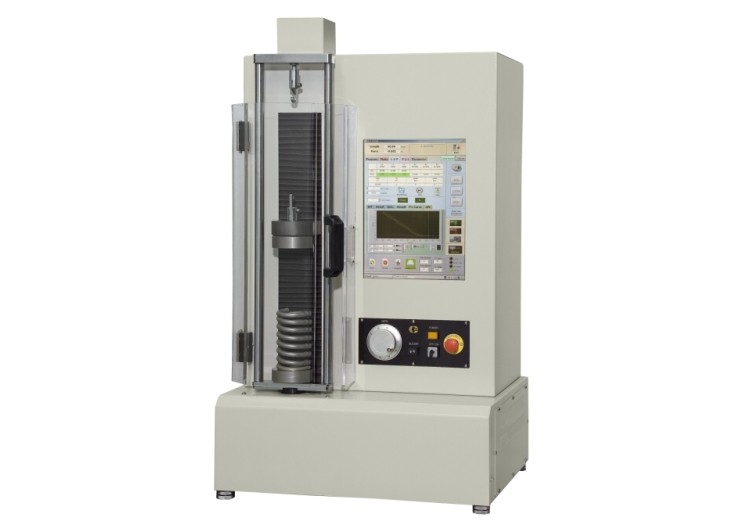

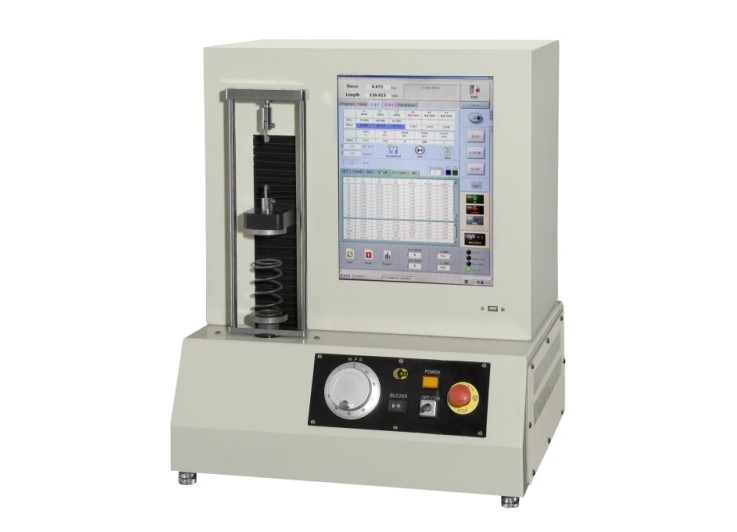

Auto Spring Tester (HST-AII series)

Description

1. SPRING ANALYSIS

  • Spring load/height curve graphical tools - analyze force/height and spring rate K at any point on curve.

2. SPRING MEASUREMENT

  • Free length L0, and L1, L2, L3, LS, spring rate K1, K2, K3 and initial tension measurement.
  • A Time Delay set for change of spring.
  • Tolerance setup available, color and buzzer alarm for bad spring.
  • All set-up data and measurement results can be stored and easily retrieved via industrial computer.
  • On-screen distribution charting and reports for SPC control.
  • Imperial and metric units switchable.
  • Both Load @ Length and Length @ Load measurement are available.
  • A standard PC compatible printer can be connected via USB connection. (Optional)



Our Spring Tester :

Auto Spring Tester (HST-AII series)

Auto Torsion Spring Tester (HST-TII series)

Manual Spring Tester (HST-HM series)

Manual Torsion Spring Tester (HST-HMT series)

Compression Spring Fatigue Tester (HST-F series)

Torsion Spring Fatigue Tester (HST-FT series)

Auto Load Sorting Spring Tester (HST-ASII series)

Auto Pre-set & Load Sorting Spring Tester (HST-ASP series)

Specification

Model Max. Load Min. Load
Display
Min. Length
Display
Max. O.D. Max. Stroke Dimension
(LxWxH)
Weight
ModelHST1AII Max. Load1kg
(10 N)
Min. Load Display0.05g
(0.0005 N)
Min. Length Display0.01mm Max. O.D.30mm
(1.2”)
Max. Stroke200mm
(7.9”)
Dimension (LxWxH)500x460x640mm
(20”x18”x25”)
Weight50KGS
(110LBS)
ModelHST5AII Max. Load5kg
(50 N)
Min. Load Display0.1g
(0.001 N)
Min. Length Display0.01mm Max. O.D.55mm
(2.2”)
Max. Stroke200mm
(7.9”)
Dimension (LxWxH)500x460x640mm
(20”x18”x25”)
Weight50KGS
(110LBS)
ModelHST50AII Max. Load50kg
(500 N)
Min. Load Display1g
(0.01 N)
Min. Length Display0.01mm Max. O.D.55mm
(2.2”)
Max. Stroke200mm
(7.9”)
Dimension (LxWxH)500x460x640mm
(20”x18”x25”)
Weight50KGS
(110LBS)
ModelHST250AII Max. Load250kg
(2,500 N)
Min. Load Display10g
(0.1 N)
Min. Length Display0.01mm Max. O.D.90mm
(3.5”)
Max. Stroke500mm
(19.7”)
Dimension (LxWxH)700x480x1000mm
(28”x19”X39”)
Weight130KGS
(290LBS)
ModelHST500AII Max. Load500kg
(5,000 N)
Min. Load Display10g
(0.1 N)
Min. Length Display0.01mm Max. O.D.200mm
(7.9”)
Max. Stroke600mm
(23.6”)
Dimension (LxWxH)960x420x1400mm
(38”x17”x55”)
Weight240KGS
(530LBS)
ModelHST1000AII Max. Load1,000kg
(10,000 N)
Min. Load Display100g
(1 N)
Min. Length Display0.01mm Max. O.D.200mm
(7.9”)
Max. Stroke600mm
(23.6”)
Dimension (LxWxH)960x420x1400mm
(38”x17”x55”)
Weight250KGS
(550LBS)
ModelHST2000AII Max. Load2,000kg
(20,000 N)
Min. Load Display100g
(1 N)
Min. Length Display0.01mm Max. O.D.200mm
(7.9”)
Max. Stroke800mm
(31.5”)
Dimension (LxWxH)980x550x1920mm
(39”x22”x76”)
Weight560KGS
(1230LBS)
* The specifications and features are subject to change without notice.
