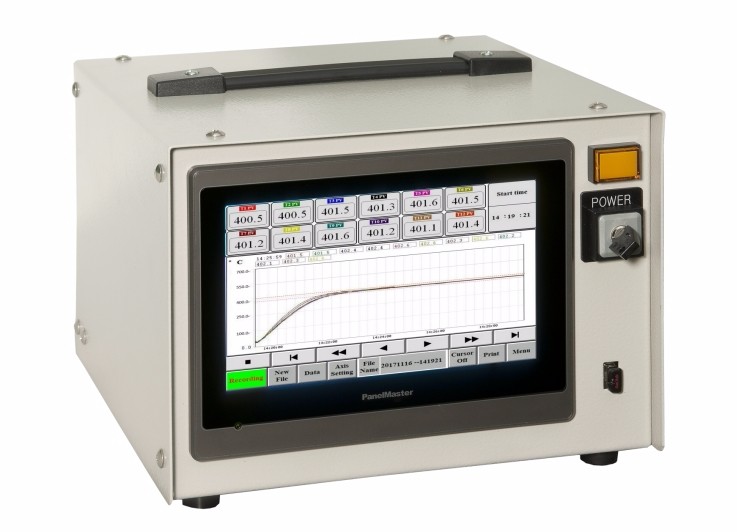

Temperature Profiling System (TPS series)

Description

Temperature Profiling System (TPS) is used for surveying and recording temperature variation in furnace heating chamber.

Features

  • Real-time temperature display and temperature chart of all channels.
  • Temperature data are stored in an USB flash drive and can be downloaded into a laptop or PC for further analysis.
  • 7” touch screen for user-friendly operation.
  • Portable design with miniature thermocouple jack, easy to be fitted on different furnaces.
  • Suitable for type K thermocouple, other types are available as option.
  • Optional testing rack and thermocouple wires are available for temperature uniformity survey (TUS).

Specification

Model Channel Outside
Dimension
- (W)
Outside
Dimension
- (D)
Outside
Dimension
- (H)
Weight
ModelTPS4 ChannelRecording up to 4 thermocouples Outside Dimension - (W)400mm
(15.7”)
Outside Dimension - (D)245mm
(9.6”)
Outside Dimension - (H)175mm
(6.9”)
Weight9KGS
(20LBS)
ModelTPS6 ChannelRecording up to 6 thermocouples Outside Dimension - (W)400mm
(15.7”)
Outside Dimension - (D)245mm
(9.6”)
Outside Dimension - (H)175mm
(6.9”)
Weight9KGS
(20LBS)
ModelTPS12 ChannelRecording up to 12 thermocouples Outside Dimension - (W)400mm
(15.7”)
Outside Dimension - (D)245mm
(9.6”)
Outside Dimension - (H)175mm
(6.9”)
Weight9KGS
(20LBS)
* The specifications and features are subject to change without notice.
