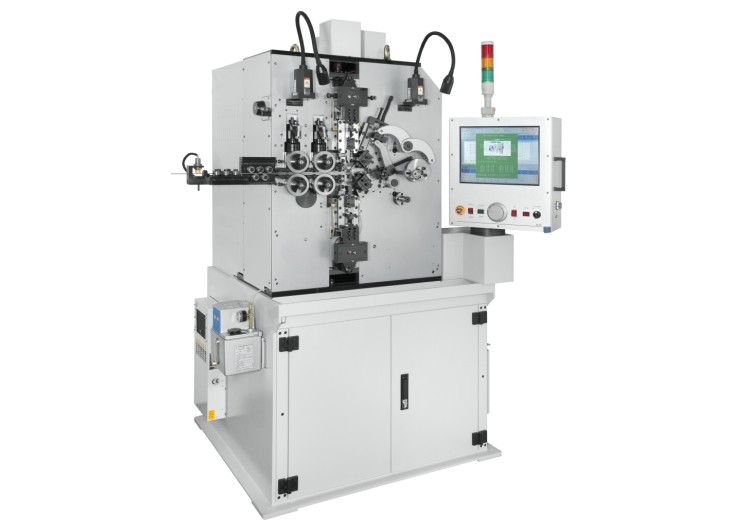

8-9 Axes Spring Coiling Machine (CQ series)

Description

  • 8 servo motors, industrial computer controlled insures reliable control. (HTC120CQ / HTC160CQ)
    9 servo motors, industrial computer controlled insures reliable control. (HTC80CU)
  • Graphic and easy to use software simplifies programming.
  • A micro pulse hand wheel is used for easy setup and programming.
  • Standard spring shapes are pre-programmed in computer CPU for easy setup.
  • O.D. control is standard feature.
  • State of the art touchscreen control interface for easy operation.
  • The Central Slide (i.e. the cutter, pitch slides and mandrel all together) will move to the correct position automatically according to the program while O.D. is changed during production, which provides setup convenience and strengthens cutter structure.
  • Cam-less operation insures fast and easy setup.
  • Mandrel in-out movement is programmable which provides setup flexibility.
  • Easy right / left hand coiling conversion without change of mechanism. (HTC80CU)
  • Advanced coiling point system design insures easy right / left hand coiling conversion without coiling point slide replacement. (HTC120CQ / HTC160CQ)
  • Rotating cutoff and straight cutoff capability are both standard features for more flexible application.





Our Spring Coiling Machines :

12 Axes Spring Coiling Machine (PX series)

8-9 Axes Spring Coiling Machine (CQ series)

5 Axes Spring Coiling Machine (CL series)

4 Axes Spring Coiling Machine (CF series)

2 Axes Spring Coiling Machine (CS series)

Specification

Photo Model Axes Wire Dia. Max. O.D. Production
Rate
Dimension
(LxWxH)
Weight
ModelHTC80CU Axes9 Wire Dia.3.0mm-8.0mm
(.118” - .315”)
Max. O.D.140mm
(5.51”)
Production RateMAX. 150 pcs/min Dimension (LxWxH)300x200x220cm
(118”x79”x87”)
Weight5800KGS
(12800LBS)
ModelHTC120CQ Axes8 Wire Dia.5.0mm-14.0mm
(.197” - .551”)
Max. O.D.180mm
(7.08”)
Production RateMAX. 60 pcs/min Dimension (LxWxH)390x255x238cm
(154”x100”x94”)
Weight14000KGS
(30800LBS)
ModelHTC160CQ Axes8 Wire Dia.8.0mm-18.0mm
(.315” - .708”)
Max. O.D.250mm
(9.84”)
Production RateMAX. 50 pcs/min Dimension (LxWxH)435x292x272cm
(171”x115”x107”)
Weight18000KGS
(39600LBS)
* The specifications and features are subject to change without notice.
