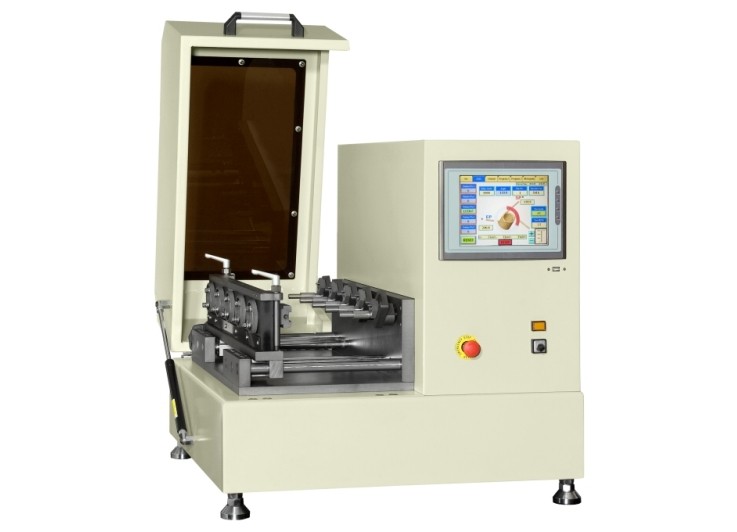

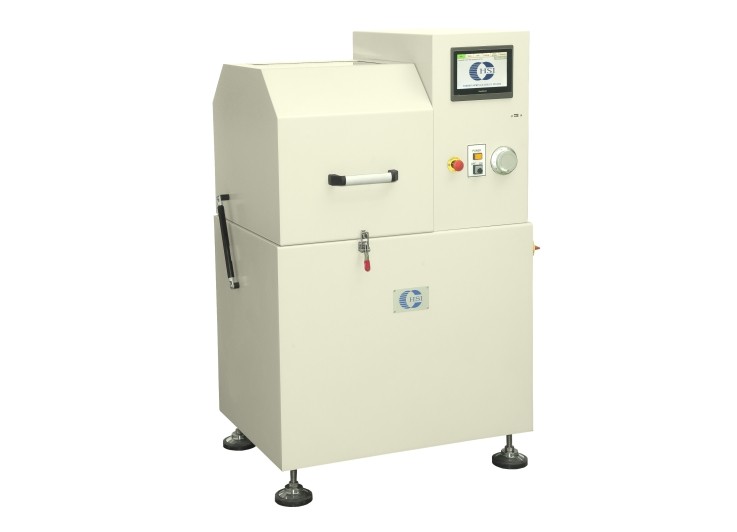

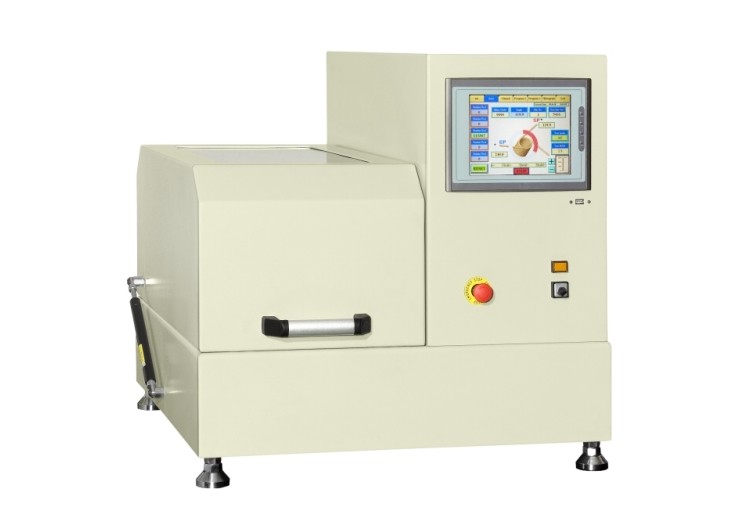

Torsion Spring Fatigue Tester (HST-FT series)

Description

  • HMI used for friendly operation.
  • Individual cycle counting for each test station.
  • Auto stop when setup cycle achieved.
  • Auto stop function can be set to stop for single failure or multiple (all) failures.
  • Touchscreen for easy setup.
  • Maximum cycle : 999,999 cycles.
  • Numerical installed angle displayed insures easy setup.
  • USB port available for test results printout through Flash Disk.



Our Spring Tester :

Auto Spring Tester (HST-AII series)

Auto Torsion Spring Tester (HST-TII series)

Manual Spring Tester (HST-HM series)

Manual Torsion Spring Tester (HST-HMT series)

Compression Spring Fatigue Tester (HST-F series)

Torsion Spring Fatigue Tester (HST-FT series)

Auto Load Sorting Spring Tester (HST-ASII series)

Auto Pre-set & Load Sorting Spring Tester (HST-ASP series)

Specification

Model Torque
Capacity
Min. Angle
Display
Max. Spring
Leg Length
Number
of Test
Station
Dimension
(LxWxH)
Weight
ModelHST2.5FT Torque Capacity2.5 Nm
(250 kgmm)
Min. Angle Display0.1° Max. Spring Leg Length50mm
(2.0”)
Number of Test Station5 PCS Dimension (LxWxH)680x730x780mm
(27”x29”x31”)
Weight150KGS
(330LBS)
ModelHST40FT Torque Capacity40 Nm
(4000 kgmm)
Min. Angle Display0.1° Max. Spring Leg Length150mm
(5.9”)
Number of Test Station1 PC Dimension (LxWxH)800x610x1220mm
(31”x24”x48”)
Weight340KGS
(750LBS)
* The specifications and features are subject to change without notice.
