Electric Conveyor Furnace - Max. 500ºC (HCF series)

Description

Features in General

  • Max. Temperature : 500oC (930oF).
  • Digital easy reading belt speed regulatory meter displays direct heat process time. (DSM is standard accessory for HCF360~HCF1150)
  • Seamless rolled edge belt eliminates tangled part damage.
  • Easy opening cover insures part access & easy maintenance.
  • Digital error diagnosis & display insures easy troubleshooting. (DEM - Optional)
  • Uniform temperature distribution, factory test before shipment (3 points in empty furnace).
  • Optional CQI9-oriented configuration for automotive industry.
  • Optional AMS2750E-oriented configuration for aerospace industry.

Feature In Safety

  • Recirculation motor overload protection.
  • Over temperature protection. (OTP - Optional)
  • Flashing alarm when an error occurred.
  • 24 hour on/off timer provides energy saving & safety. (except HCF110 / HCF110-II)
  • Temperature over tolerance alarm.



Our Conveyor Furnaces :

Electric Conveyor Furnace - Max. 500ºC (HCF series)

Electric Strip-Link Belt Furnace - Max. 500ºC (HSF series)

Specification

Photo Model Conveyor
Width
Inlet
Height
Heating
Area
Length
Heating
Zone
Conveyor
Speed
(DSM Used)
Power
Capacity
Outside
Dimension
- (L)
Outside
Dimension
- (W)
Outside
Dimension
- (H)
Weight

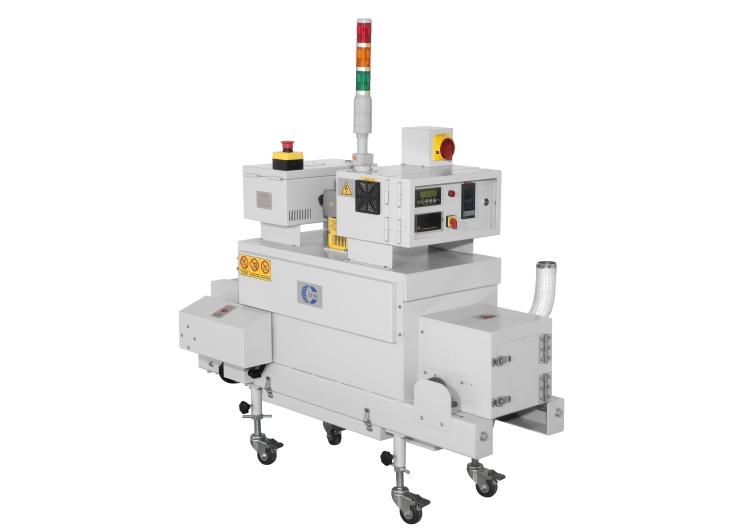

ModelHCF110 Conveyor Width100mm
(3.9”)
Inlet Height50mm
(2”)
Heating Area Length550mm
(21.6”)
Heating Zone1 Conveyor Speed (DSM Used)2-20
minute
Power Capacity3.6 kW Outside Dimension - (L)1130mm
(44”)
Outside Dimension - (W)480mm
(19”)
Outside Dimension - (H)1000mm
(39”)
Weight135KGS
(300LBS)
ModelHCF110-II Conveyor Width200mm
(7.9”)
Inlet Height50mm
(2”)
Heating Area Length550mm
(21.6”)
Heating Zone1 Conveyor Speed (DSM Used)2-20
minute
Power Capacity5 kW Outside Dimension - (L)1130mm
(44”)
Outside Dimension - (W)580mm
(23”)
Outside Dimension - (H)1000mm
(39”)
Weight165KGS
(360LBS)

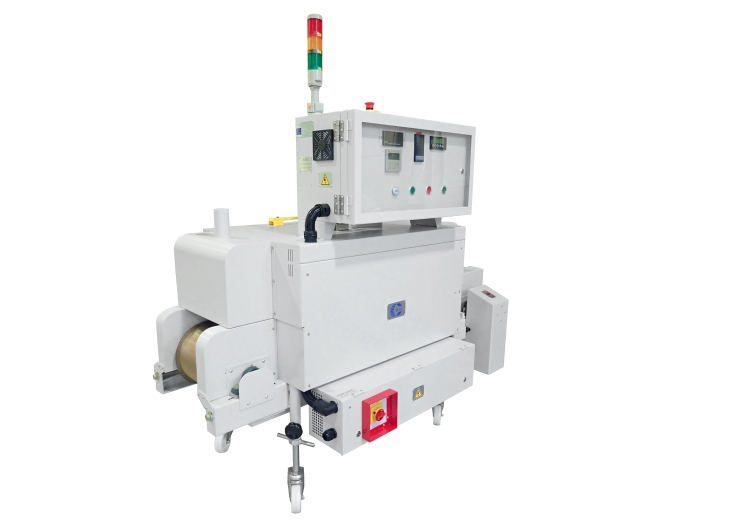

ModelHCF160 Conveyor Width100mm
(3.9”)
Inlet Height70mm
(2.8”)
Heating Area Length700mm
(27.5”)
Heating Zone1 Conveyor Speed (DSM Used)3-30
minute
Power Capacity4 kW Outside Dimension - (L)1600mm
(63”)
Outside Dimension - (W)650mm
(26”)
Outside Dimension - (H)1400mm
(55”)
Weight240KGS
(530LBS)
ModelHCF160-II Conveyor Width200mm
(7.9”)
Inlet Height70mm
(2.8”)
Heating Area Length700mm
(27.5”)
Heating Zone1 Conveyor Speed (DSM Used)3-30
minute
Power Capacity6 kW Outside Dimension - (L)1600mm
(63”)
Outside Dimension - (W)750mm
(30”)
Outside Dimension - (H)1400mm
(55”)
Weight285KGS
(630LBS)

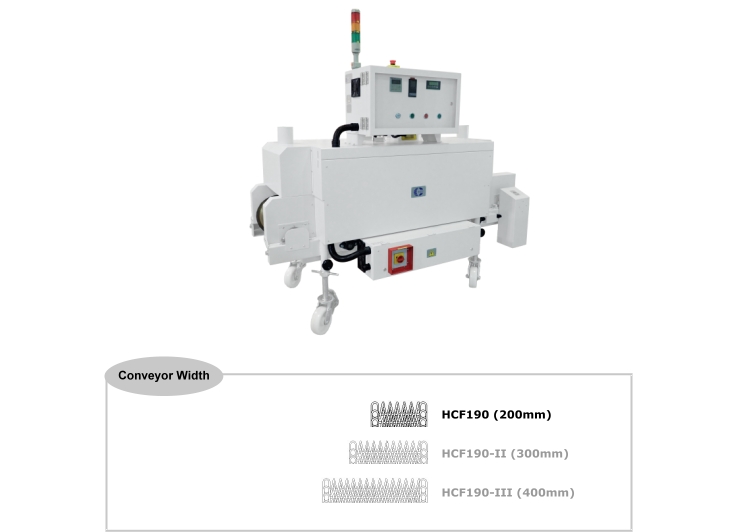

ModelHCF190 Conveyor Width200mm
(7.9”)
Inlet Height80mm
(3.1”)
Heating Area Length1000mm
(39.3”)
Heating Zone1 Conveyor Speed (DSM Used)4-40
minute
Power Capacity8 kW Outside Dimension - (L)1900mm
(75”)
Outside Dimension - (W)750mm
(30”)
Outside Dimension - (H)1470mm
(58”)
Weight360KGS
(790LBS)
ModelHCF190-II Conveyor Width300mm
(11.8”)
Inlet Height80mm
(3.1”)
Heating Area Length1000mm
(39.3”)
Heating Zone1 Conveyor Speed (DSM Used)4-40
minute
Power Capacity12 kW Outside Dimension - (L)1900mm
(75”)
Outside Dimension - (W)850mm
(33”)
Outside Dimension - (H)1470mm
(58”)
Weight420KGS
(920LBS)

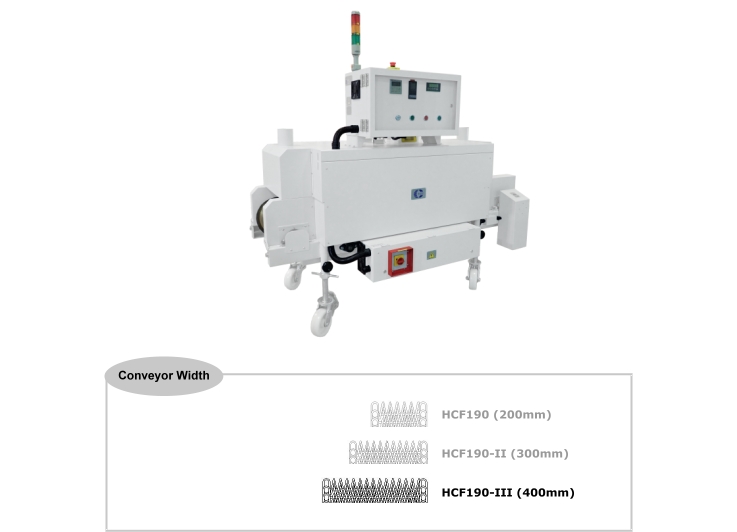

ModelHCF190-III Conveyor Width400mm
(15.7”)
Inlet Height80mm
(3.1”)
Heating Area Length1000mm
(39.3”)
Heating Zone1 Conveyor Speed (DSM Used)4-40
minute
Power Capacity16 kW Outside Dimension - (L)1900mm
(75”)
Outside Dimension - (W)950mm
(37”)
Outside Dimension - (H)1470mm
(58”)
Weight500KGS
(1100LBS)
ModelHCF210 Conveyor Width200mm
(7.9”)
Inlet Height80mm
(3.1”)
Heating Area Length1200mm
(47.2”)
Heating Zone2 Conveyor Speed (DSM Used)4-40
minute
Power Capacity10 kW Outside Dimension - (L)2100mm
(83”)
Outside Dimension - (W)750mm
(30”)
Outside Dimension - (H)1470mm
(58”)
Weight450KGS
(990LBS)

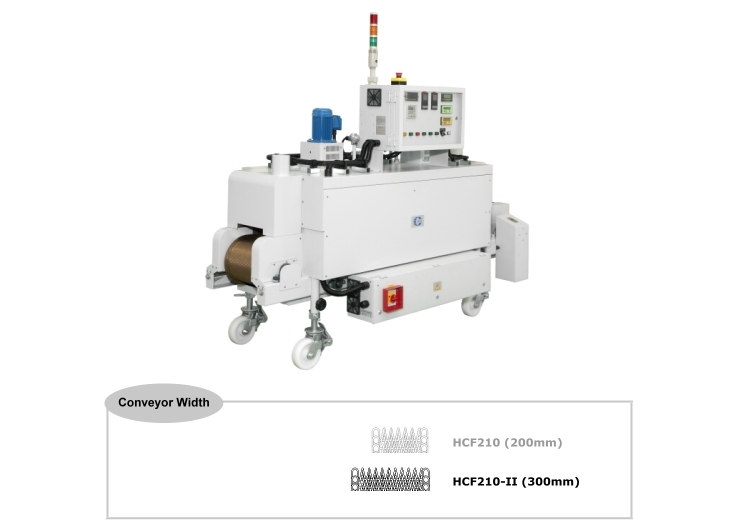

ModelHCF210-II Conveyor Width300mm
(11.8”)
Inlet Height80mm
(3.1”)
Heating Area Length1200mm
(47.2”)
Heating Zone2 Conveyor Speed (DSM Used)4-40
minute
Power Capacity16 kW Outside Dimension - (L)2100mm
(83”)
Outside Dimension - (W)850mm
(33”)
Outside Dimension - (H)1470mm
(58”)
Weight500KGS
(1100LBS)
ModelHCF260 Conveyor Width300mm
(11.8”)
Inlet Height90mm
(3.5”)
Heating Area Length1500mm
(59”)
Heating Zone2 Conveyor Speed (DSM Used)5-50
minute
Power Capacity16 kW Outside Dimension - (L)2600mm
(102”)
Outside Dimension - (W)900mm
(35”)
Outside Dimension - (H)1510mm
(59”)
Weight470KGS
(1030LBS)
ModelHCF260-II Conveyor Width400mm
(15.7”)
Inlet Height90mm
(3.5”)
Heating Area Length1500mm
(59”)
Heating Zone2 Conveyor Speed (DSM Used)5-50
minute
Power Capacity19 kW Outside Dimension - (L)2600mm
(102”)
Outside Dimension - (W)1010mm
(40”)
Outside Dimension - (H)1510mm
(59”)
Weight570KGS
(1250LBS)
ModelHCF260-III Conveyor Width500mm
(19.6”)
Inlet Height90mm
(3.5”)
Heating Area Length1500mm
(59”)
Heating Zone2 Conveyor Speed (DSM Used)5-50
minute
Power Capacity30 kW Outside Dimension - (L)2600mm
(102”)
Outside Dimension - (W)1110mm
(44”)
Outside Dimension - (H)1600mm
(63”)
Weight700KGS
(1540LBS)

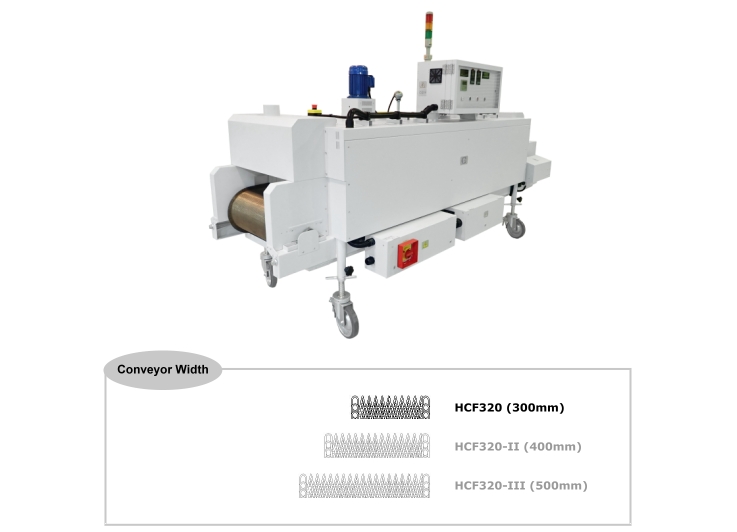

ModelHCF320 Conveyor Width300mm
(11.8”)
Inlet Height90mm
(3.5”)
Heating Area Length2100mm
(82.6”)
Heating Zone2 Conveyor Speed (DSM Used)6-60
minute
Power Capacity24 kW Outside Dimension - (L)3200mm
(126”)
Outside Dimension - (W)900mm
(35”)
Outside Dimension - (H)1550mm
(61”)
Weight650KGS
(1430LBS)

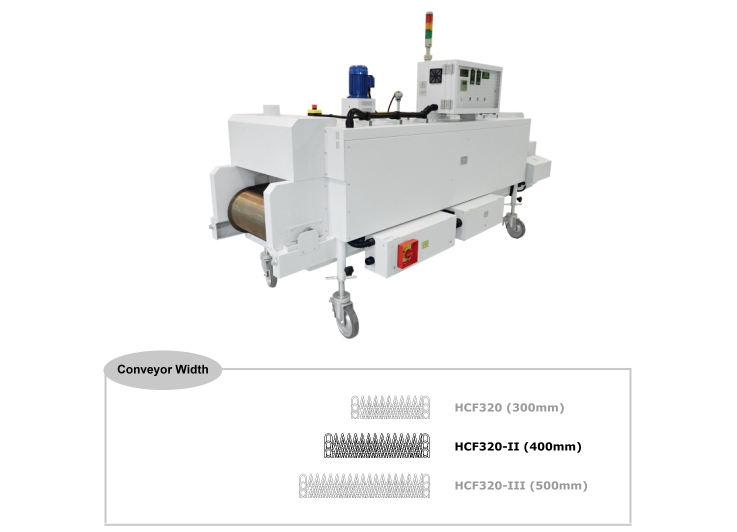

ModelHCF320-II Conveyor Width400mm
(15.7”)
Inlet Height90mm
(3.5”)
Heating Area Length2100mm
(82.6”)
Heating Zone2 Conveyor Speed (DSM Used)6-60
minute
Power Capacity28 kW Outside Dimension - (L)3200mm
(126”)
Outside Dimension - (W)1010mm
(40”)
Outside Dimension - (H)1550mm
(61”)
Weight770KGS
(1690LBS)

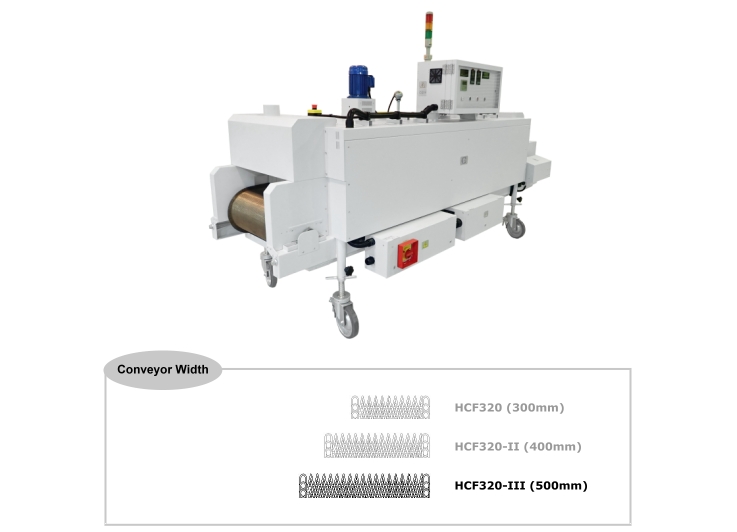

ModelHCF320-III Conveyor Width500mm
(19.6”)
Inlet Height90mm
(3.5”)
Heating Area Length2100mm
(82.6”)
Heating Zone2 Conveyor Speed (DSM Used)6-60
minute
Power Capacity48 kW Outside Dimension - (L)3200mm
(126”)
Outside Dimension - (W)1110mm
(44”)
Outside Dimension - (H)1560mm
(61”)
Weight920KGS
(2020LBS)
ModelHCF320-IV Conveyor Width600mm
(23.6”)
Inlet Height90mm
(3.5”)
Heating Area Length2100mm
(82.6”)
Heating Zone2 Conveyor Speed (DSM Used)6-60
minute
Power Capacity57 kW Outside Dimension - (L)3200mm
(126”)
Outside Dimension - (W)1230mm
(48”)
Outside Dimension - (H)1570mm
(62”)
Weight1100KGS
(2420LBS)

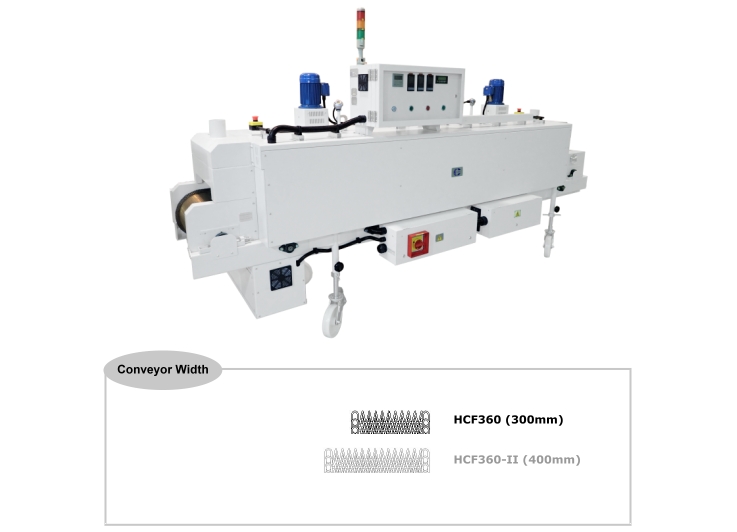

ModelHCF360 Conveyor Width300mm
(11.8”)
Inlet Height130mm
(5.1”)
Heating Area Length2500mm
(98”)
Heating Zone3 Conveyor Speed (DSM Used)7-70
minute
Power Capacity33 kW Outside Dimension - (L)3550mm
(140”)
Outside Dimension - (W)900mm
(35”)
Outside Dimension - (H)1640mm
(65”)
Weight1000KGS
(2200LBS)

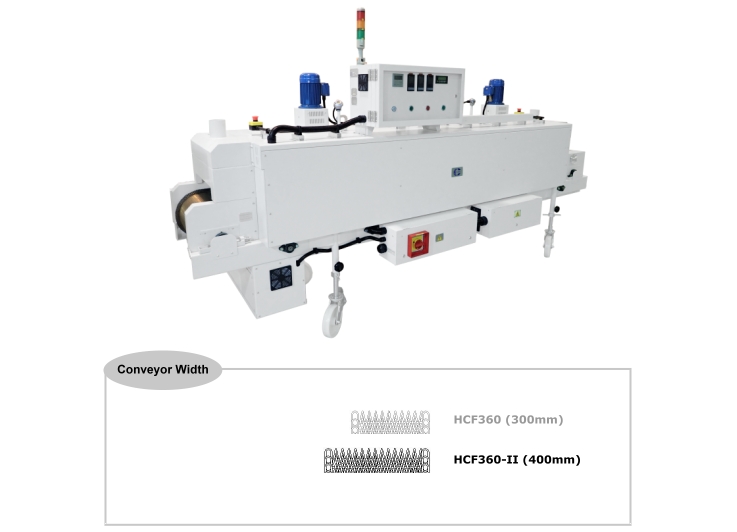

ModelHCF360-II Conveyor Width400mm
(15.7”)
Inlet Height130mm
(5.1”)
Heating Area Length2500mm
(98”)
Heating Zone3 Conveyor Speed (DSM Used)7-70
minute
Power Capacity43 kW Outside Dimension - (L)3550mm
(140”)
Outside Dimension - (W)1000mm
(39”)
Outside Dimension - (H)1640mm
(65”)
Weight1130KGS
(2490LBS)
ModelHCF360-III Conveyor Width500mm
(19.6”)
Inlet Height130mm
(5.1”)
Heating Area Length2500mm
(98”)
Heating Zone3 Conveyor Speed (DSM Used)7-70
minute
Power Capacity54 kW Outside Dimension - (L)3550mm
(140”)
Outside Dimension - (W)1100mm
(43”)
Outside Dimension - (H)1610mm
(63”)
Weight1270KGS
(2790LBS)
ModelHCF360-IV Conveyor Width600mm
(23.6”)
Inlet Height130mm
(5.1”)
Heating Area Length2500mm
(98”)
Heating Zone3 Conveyor Speed (DSM Used)7-70
minute
Power Capacity64 kW Outside Dimension - (L)3550mm
(140”)
Outside Dimension - (W)1200mm
(47”)
Outside Dimension - (H)1610mm
(63”)
Weight1460KGS
(3210LBS)

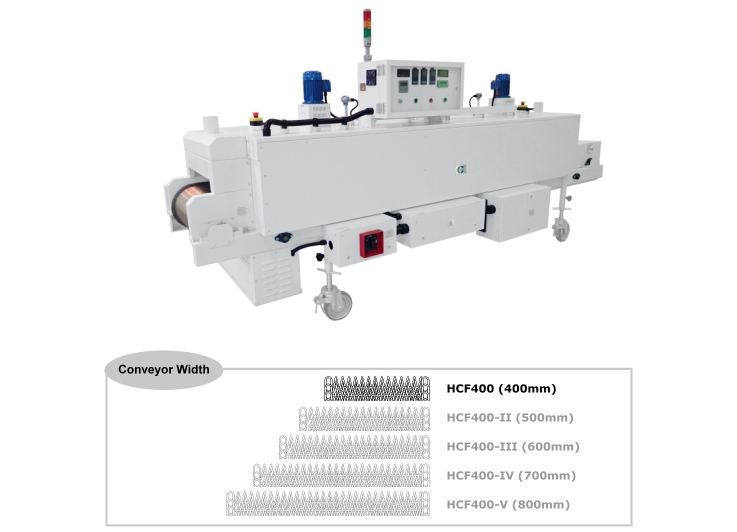

ModelHCF400 Conveyor Width400mm
(15.7”)
Inlet Height130mm
(5.1”)
Heating Area Length2800mm
(110”)
Heating Zone3 Conveyor Speed (DSM Used)7-70
minute
Power Capacity40 kW Outside Dimension - (L)4000mm
(157”)
Outside Dimension - (W)1010mm
(40”)
Outside Dimension - (H)1660mm
(65”)
Weight1200KGS
(2640LBS)

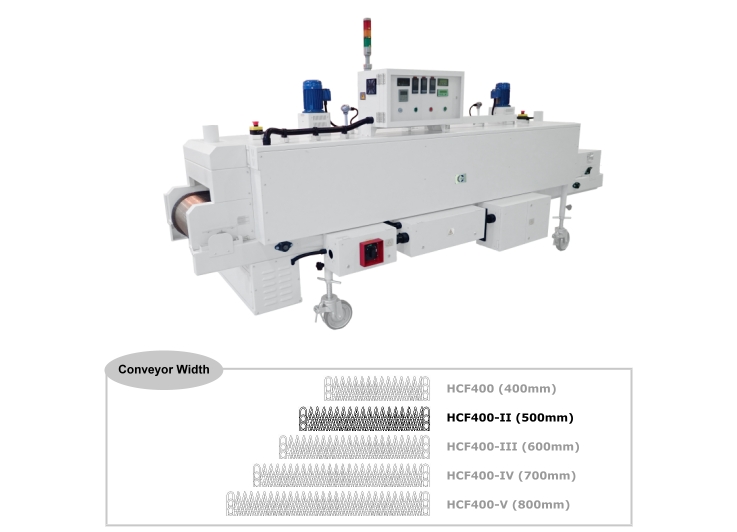

ModelHCF400-II Conveyor Width500mm
(19.6”)
Inlet Height130mm
(5.1”)
Heating Area Length2800mm
(110”)
Heating Zone3 Conveyor Speed (DSM Used)7-70
minute
Power Capacity48 kW Outside Dimension - (L)4000mm
(157”)
Outside Dimension - (W)1110mm
(44”)
Outside Dimension - (H)1660mm
(65”)
Weight1330KGS
(2930LBS)

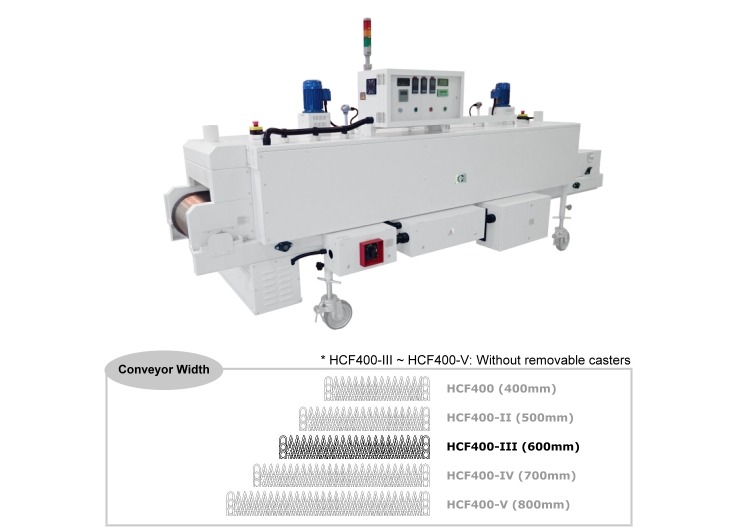

ModelHCF400-III Conveyor Width600mm
(23.6”)
Inlet Height130mm
(5.1”)
Heating Area Length2800mm
(110”)
Heating Zone3 Conveyor Speed (DSM Used)7-70
minute
Power Capacity57 kW Outside Dimension - (L)4000mm
(157”)
Outside Dimension - (W)1210mm
(48”)
Outside Dimension - (H)1670mm
(66”)
Weight1560KGS
(3430LBS)

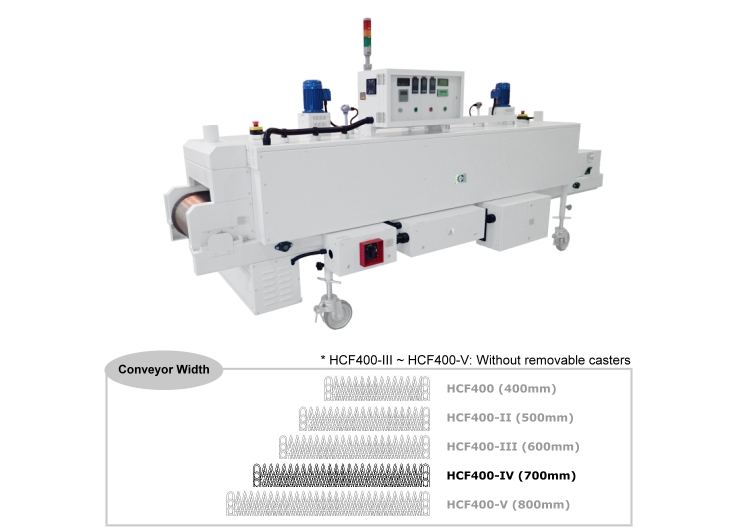

ModelHCF400-IV Conveyor Width700mm
(27.5”)
Inlet Height130mm
(5.1”)
Heating Area Length2800mm
(110”)
Heating Zone3 Conveyor Speed (DSM Used)7-70
minute
Power Capacity63 kW Outside Dimension - (L)4000mm
(157”)
Outside Dimension - (W)1310mm
(52”)
Outside Dimension - (H)1680mm
(66”)
Weight1750KGS
(3850LBS)

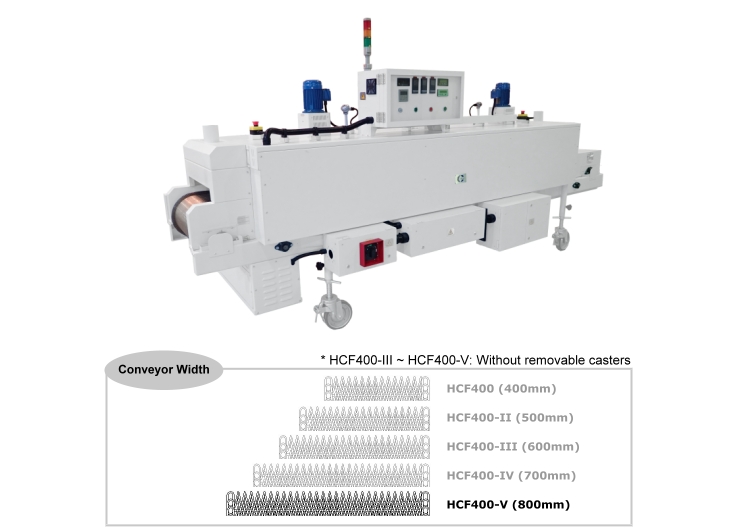

ModelHCF400-V Conveyor Width800mm
(31.5”)
Inlet Height130mm
(5.1”)
Heating Area Length2800mm
(110”)
Heating Zone3 Conveyor Speed (DSM Used)7-70
minute
Power Capacity75 kW Outside Dimension - (L)4000mm
(157”)
Outside Dimension - (W)1410mm
(56”)
Outside Dimension - (H)1680mm
(66”)
Weight1950KGS
(4290LBS)
ModelHCF500 Conveyor Width500mm
(19.6”)
Inlet Height150mm
(5.9”)
Heating Area Length3500mm
(138”)
Heating Zone4 Conveyor Speed (DSM Used)8-80
minute
Power Capacity57 kW Outside Dimension - (L)5000mm
(197”)
Outside Dimension - (W)1110mm
(44”)
Outside Dimension - (H)1740mm
(69”)
Weight1750KGS
(3850LBS
ModelHCF500-II Conveyor Width600mm
(23.6”)
Inlet Height150mm
(5.9”)
Heating Area Length3500mm
(138”)
Heating Zone4 Conveyor Speed (DSM Used)8-80
minute
Power Capacity68 kW Outside Dimension - (L)5000mm
(197”)
Outside Dimension - (W)1210mm
(48”)
Outside Dimension - (H)1740mm
(69”)
Weight2070KGS
(4550LBS)
ModelHCF500-III Conveyor Width700mm
(27.5”)
Inlet Height150mm
(5.9”)
Heating Area Length3500mm
(138”)
Heating Zone4 Conveyor Speed (DSM Used)8-80
minute
Power Capacity75 kW Outside Dimension - (L)5000mm
(197”)
Outside Dimension - (W)1310mm
(52”)
Outside Dimension - (H)1740mm
(69”)
Weight2400KGS
(5280LBS)
ModelHCF500-IV Conveyor Width800mm
(31.5”)
Inlet Height150mm
(5.9”)
Heating Area Length3500mm
(138”)
Heating Zone4 Conveyor Speed (DSM Used)8-80
minute
Power Capacity82 kW Outside Dimension - (L)5000mm
(197”)
Outside Dimension - (W)1410mm
(56”)
Outside Dimension - (H)1740mm
(69”)
Weight2750KGS
(6050LBS)

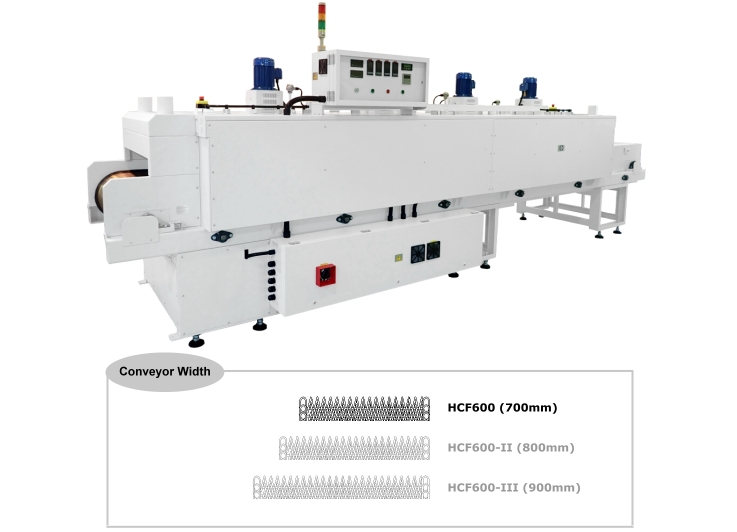

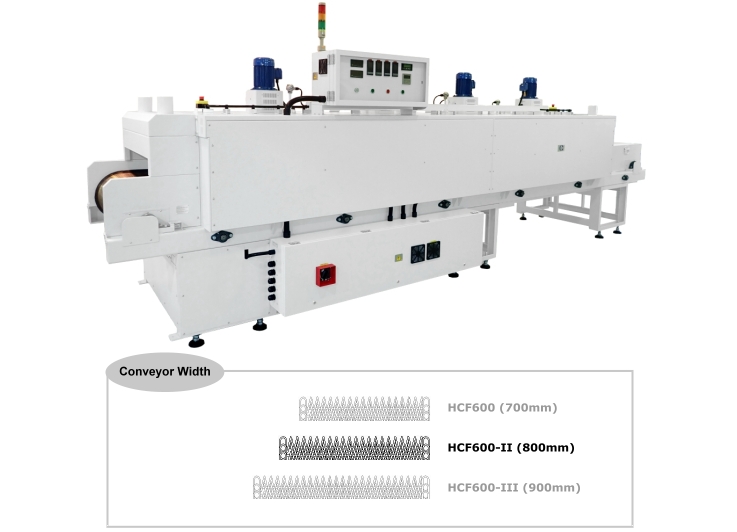

ModelHCF600 Conveyor Width700mm
(27.5”)
Inlet Height180mm
(7.1”)
Heating Area Length4100mm
(161”)
Heating Zone4 Conveyor Speed (DSM Used)12-120
minute
Power Capacity88 kW Outside Dimension - (L)5800mm
(228”)
Outside Dimension - (W)1310mm
(52”)
Outside Dimension - (H)1750mm
(69”)
Weight2500KGS
(5500LBS)
ModelHCF600-II Conveyor Width800mm
(31.5”)
Inlet Height180mm
(7.1”)
Heating Area Length4100mm
(161”)
Heating Zone4 Conveyor Speed (DSM Used)12-120
minute
Power Capacity96 kW Outside Dimension - (L)5800mm
(228”)
Outside Dimension - (W)1410mm
(56”)
Outside Dimension - (H)1750mm
(69”)
Weight2850KGS
(6270LBS

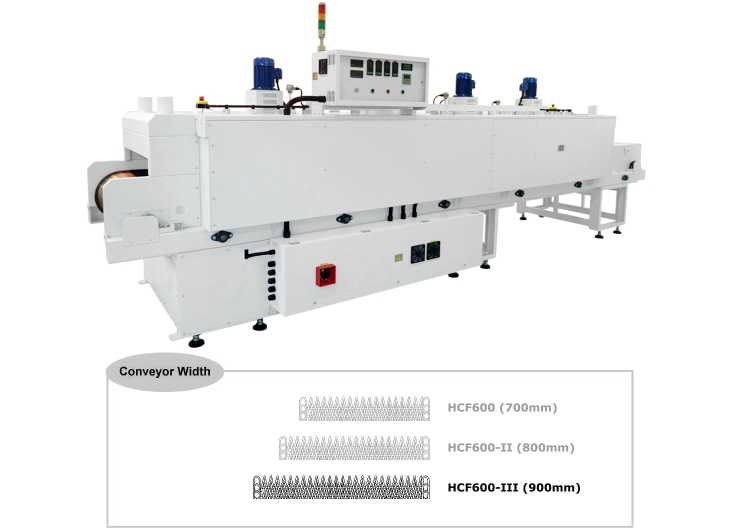

ModelHCF600-III Conveyor Width900mm
(35.4”)
Inlet Height180mm
(7.1”)
Heating Area Length4100mm
(161”)
Heating Zone4 Conveyor Speed (DSM Used)12-120
minute
Power Capacity105 kW Outside Dimension - (L)5800mm
(228”)
Outside Dimension - (W)1510mm
(59”)
Outside Dimension - (H)1750mm
(69”)
Weight3200KGS
(7040LBS)
ModelHCF600-IV Conveyor Width1000mm
(39.3”)
Inlet Height180mm
(7.1”)
Heating Area Length4100mm
(161”)
Heating Zone4 Conveyor Speed (DSM Used)12-120
minute
Power Capacity118 kW Outside Dimension - (L)5800mm
(228”)
Outside Dimension - (W)1610mm
(63”)
Outside Dimension - (H)1750mm
(69”)
Weight3600KGS
(7920LBS)
ModelHCF600-IX Conveyor Width1500mm
(59.1”)
Inlet Height200mm
(7.9”)
Heating Area Length4050mm
(159”)
Heating Zone4 Conveyor Speed (DSM Used)12-120
minute
Power Capacity193 kW Outside Dimension - (L)5900mm
(232”)
Outside Dimension - (W)2150mm
(85”)
Outside Dimension - (H)1930mm
(76”)
Weight6450KGS
(14200LBS)

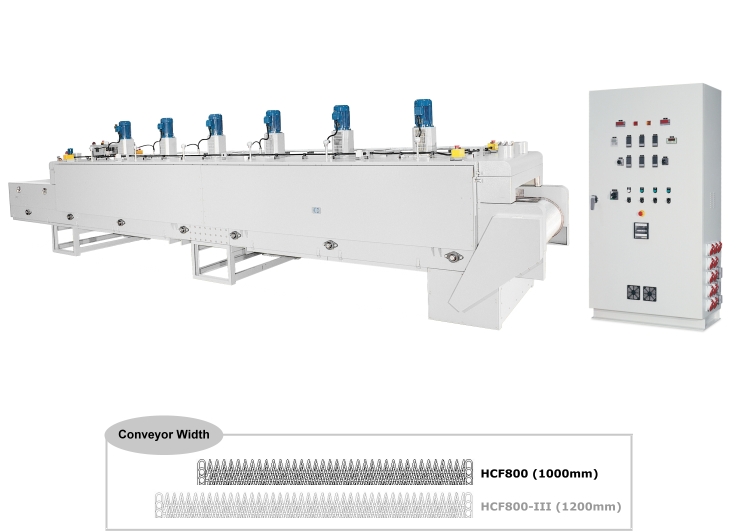

ModelHCF800 Conveyor Width1000mm
(39.3”)
Inlet Height200mm
(7.9”)
Heating Area Length5800mm
(228”)
Heating Zone6 Conveyor Speed (DSM Used)15-150
minute
Power Capacity132 kW Outside Dimension - (L)8000mm
(315”)
Outside Dimension - (W)1710mm
(67”)
Outside Dimension - (H)2000mm
(79”)
Weight4500KGS
(9900LBS)

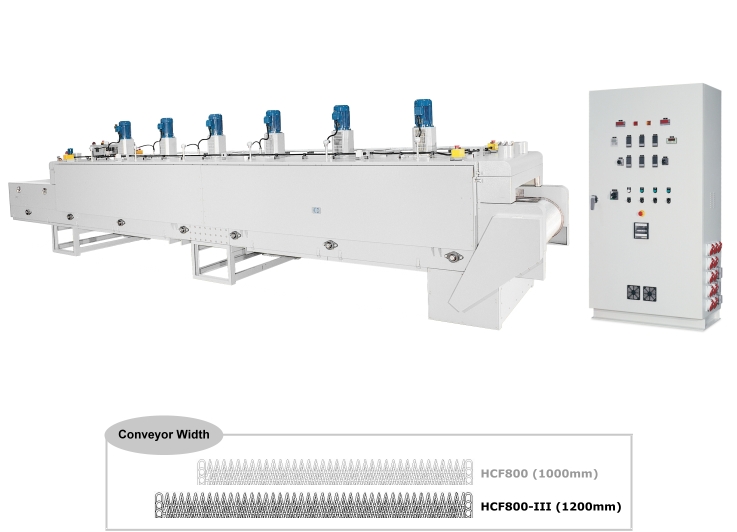

ModelHCF800-III Conveyor Width1200mm
(47.2”)
Inlet Height200mm
(7.9”)
Heating Area Length5800mm
(228”)
Heating Zone6 Conveyor Speed (DSM Used)15-150
minute
Power Capacity204 kW Outside Dimension - (L)8000mm
(315”)
Outside Dimension - (W)1910mm
(75”)
Outside Dimension - (H)2080mm
(82”)
Weight5100KGS
(11220LBS
ModelHCF980 Conveyor Width1200mm
(47.2”)
Inlet Height250mm
(9.8”)
Heating Area Length7300mm
(287”)
Heating Zone6 Conveyor Speed (DSM Used)18-180
minute
Power Capacity223 kW Outside Dimension - (L)9800mm
(386”)
Outside Dimension - (W)1910mm
(75”)
Outside Dimension - (H)2130mm
(84”)
Weight7600KGS
(16720LBS)
ModelHCF1150 Conveyor Width1200mm
(47.2”)
Inlet Height250mm
(9.8”)
Heating Area Length8900mm
(350”)
Heating Zone8 Conveyor Speed (DSM Used)25-180
minute
Power Capacity260 kW Outside Dimension - (L)11500mm
(453”)
Outside Dimension - (W)1910mm
(75”)
Outside Dimension - (H)2180mm
(86”)
Weight9200KGS
(20240LBS)
* The specifications and features are subject to change without notice.
