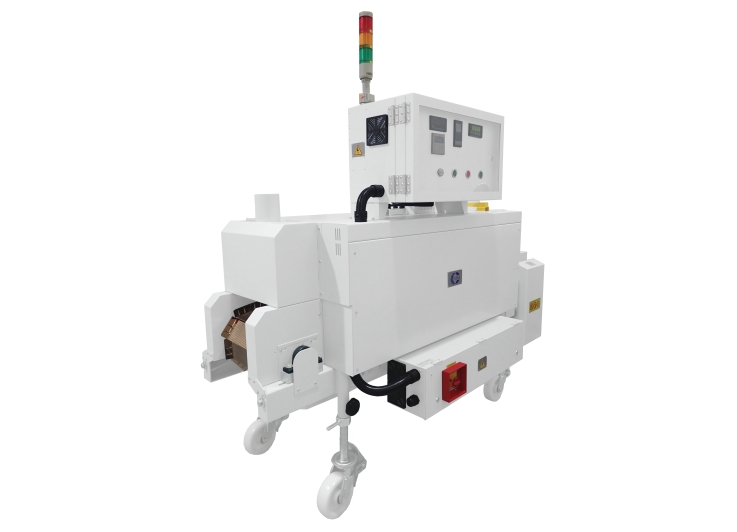

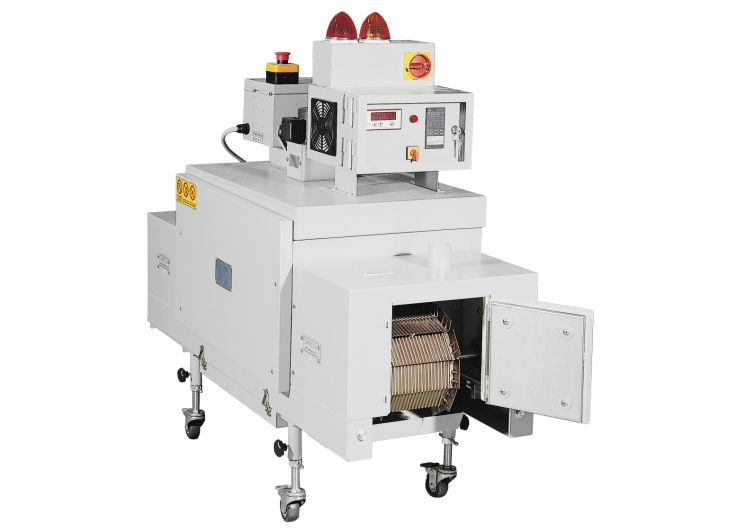

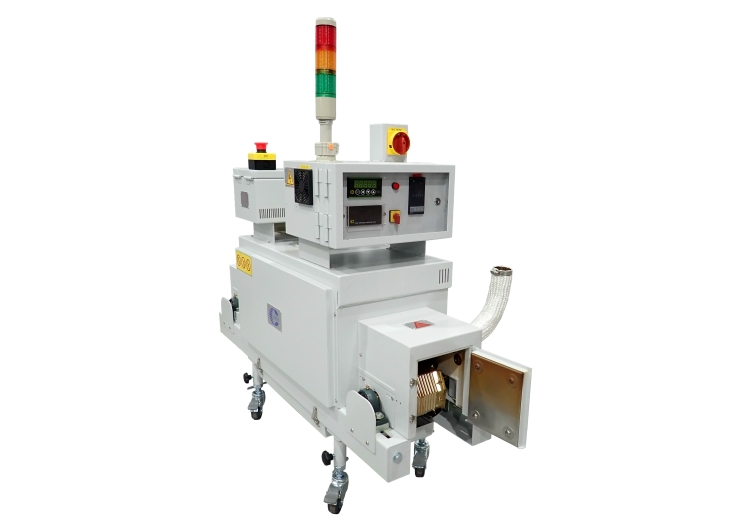

Electric Strip-Link Belt Furnace - Max. 500ºC (HSF series)

Description

Features In General

  • Max. Temperature : 500oC (930oF) for HSF115~HSF195-II.
    Max. Temperature : 400oC (750oF) for HSF215~HSF325.
  • Strip formed rolled edge belt is ideal for torsion, extension springs and forming parts wire dia. smaller than 1mm.
  • Digital easy reading belt speed regulatory meter displays direct heat process time. (DSM)
  • Easy opening cover insures part access & easy maintenance.
  • Digital error diagnosis & display insures easy troubleshooting. (DEM - Optional)
  • Uniform temperature distribution, factory test before shipment (3 points in empty oven).
  • Optional CQI9-oriented configuration for automotive industry.
  • Optional AMS2750E-oriented configuration for aerospace industry.

Features In Safety

  • Recirculation motor overload protection.
  • Over temperature protection. (OTP - Optional)
  • Flashing alarm when an error occurred.
  • 24 hour on/off timer provides energy saving & safety. (except HSF115 / HSF115-II / HSF165-II)
  • Temperature over tolerance alarm.



Our Conveyor Furnaces :

Electric Conveyor Furnace - Max. 500ºC (HCF series)

Electric Strip-Link Belt Furnace - Max. 500ºC (HSF series)

Specification

Photo Model Conveyor
Width
Inlet
Height
Heating
Area
Length
Heating
Zone
Conveyor
Speed
(DSM Used)
Power
Capacity
Max. Temp. Outside
Dimension
- (L)
Outside
Dimension
- (W)
Outside
Dimension
- (H)
Weight
ModelHSF115 Conveyor Width100mm
(3.9”)
Inlet Height55mm
(2.2”)
Heating Area Length550mm
(21.6”)
Heating Zone1 Conveyor Speed (DSM Used)2-20
minute
Power Capacity3.6 kW Max. Temp.500ºC
(930ºF)
Outside Dimension - (L)1210mm
(48”)
Outside Dimension - (W)440mm
(17”)
Outside Dimension - (H)1050mm
(41”)
Weight140KGS
(310LBS)
ModelHSF115-II Conveyor Width150mm
(5.9”)
Inlet Height60mm
(2.4”)
Heating Area Length550mm
(21.6”)
Heating Zone1 Conveyor Speed (DSM Used)2-20
minute
Power Capacity5.4 kW Max. Temp.500ºC
(930ºF)
Outside Dimension - (L)1300mm
(51”)
Outside Dimension - (W)580mm
(23”)
Outside Dimension - (H)1250mm
(49”)
Weight200KGS
(440LBS)
ModelHSF165-II Conveyor Width150mm
(5.9”)
Inlet Height60mm
(2.4”)
Heating Area Length830mm
(32.6”)
Heating Zone1 Conveyor Speed (DSM Used)3-30
minute
Power Capacity8 kW Max. Temp.500ºC
(930ºF)
Outside Dimension - (L)1600mm
(63”)
Outside Dimension - (W)580mm
(23”)
Outside Dimension - (H)1250mm
(49”)
Weight250KGS
(550LBS)
ModelHSF195 Conveyor Width200mm
(7.9”)
Inlet Height70mm
(2.8”)
Heating Area Length1000mm
(39.3”)
Heating Zone1 Conveyor Speed (DSM Used)4-40
minute
Power Capacity8 kW Max. Temp.500ºC
(930ºF)
Outside Dimension - (L)1900mm
(75”)
Outside Dimension - (W)750mm
(30”)
Outside Dimension - (H)1470mm
(58”)
Weight400KGS
(880LBS)
ModelHSF195-II Conveyor Width300mm
(11.8”)
Inlet Height70mm
(2.8”)
Heating Area Length1000mm
(39.3”)
Heating Zone1 Conveyor Speed (DSM Used)4-40
minute
Power Capacity12 kW Max. Temp.500ºC
(930ºF)
Outside Dimension - (L)1900mm
(75”)
Outside Dimension - (W)850mm
(33”)
Outside Dimension - (H)1470mm
(58”)
Weight450KGS
(990LBS)
ModelHSF215 Conveyor Width200mm
(7.9”)
Inlet Height70mm
(2.8”)
Heating Area Length1200mm
(47.2”)
Heating Zone2 Conveyor Speed (DSM Used)4-40
minute
Power Capacity10 kW Max. Temp.400ºC
(750ºF)
Outside Dimension - (L)2100mm
(83”)
Outside Dimension - (W)750mm
(30”)
Outside Dimension - (H)1470mm
(58”)
Weight450KGS
(990LBS)
ModelHSF215-II Conveyor Width300mm
(11.8”)
Inlet Height70mm
(2.8”)
Heating Area Length1200mm
(47.2”)
Heating Zone2 Conveyor Speed (DSM Used)4-40
minute
Power Capacity16 kW Max. Temp.400ºC
(750ºF)
Outside Dimension - (L)2100mm
(83”)
Outside Dimension - (W)850mm
(33”)
Outside Dimension - (H)1470mm
(58”)
Weight500KGS
(1100LBS)
ModelHSF265 Conveyor Width300mm
(11.8”)
Inlet Height70mm
(2.8”)
Heating Area Length1500mm
(59”)
Heating Zone2 Conveyor Speed (DSM Used)5-50
minute
Power Capacity21 kW Max. Temp.400ºC
(750ºF)
Outside Dimension - (L)2600mm
(102”)
Outside Dimension - (W)900mm
(35”)
Outside Dimension - (H)1510mm
(59”)
Weight520KGS
(1140LBS)
ModelHSF325 Conveyor Width300mm
(11.8”)
Inlet Height70mm
(2.8”)
Heating Area Length2100mm
(82.6”)
Heating Zone2 Conveyor Speed (DSM Used)6-60
minute
Power Capacity28 kW Max. Temp.400ºC
(750ºF)
Outside Dimension - (L)3200mm
(126”)
Outside Dimension - (W)900mm
(35”)
Outside Dimension - (H)1550mm
(61”)
Weight700KGS
(1540LBS)
* The specifications and features are subject to change without notice.
